TRADITIONAL MACHINES > La San Marco Coffee Machine
Product Details:

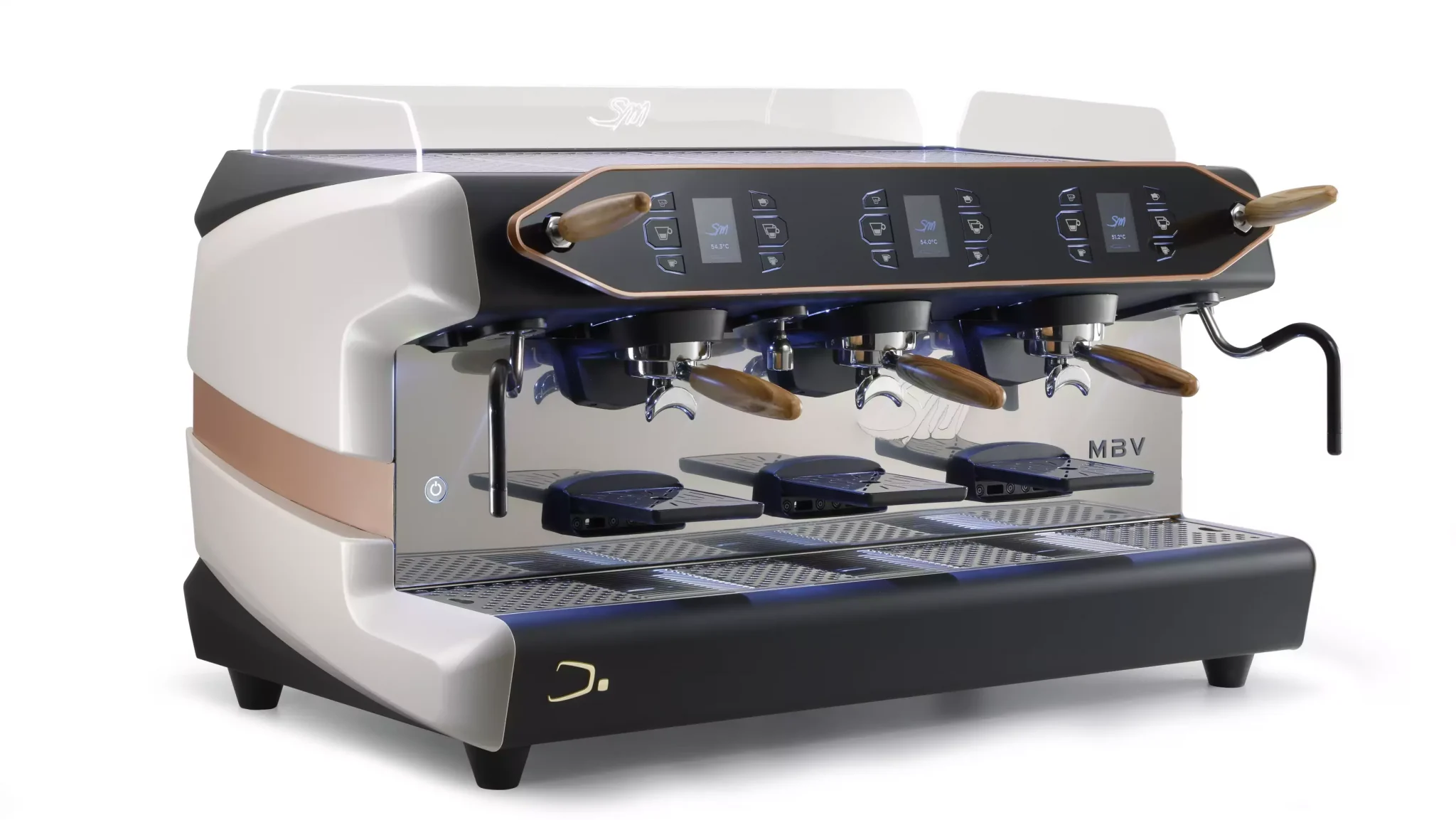

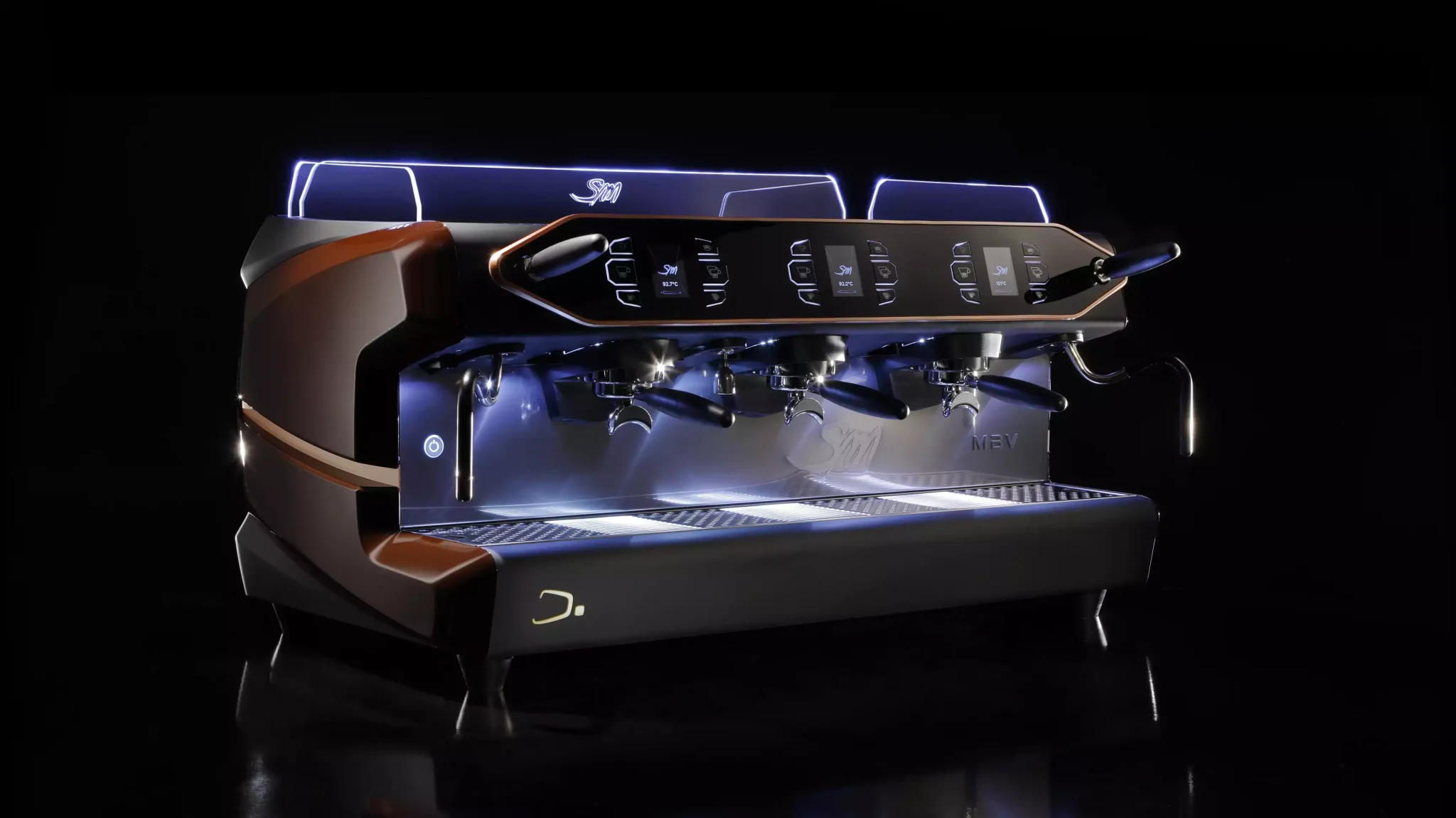

D. MBV is a multiboiler model available in two versions, with 2 and 3 dispenser groups.
In the top-of-range “mbv” version, d. integrates multiboiler technology with pressure profiling, to allow boiler pressure adjustments and also pressure profiles with precision to the tenth of a bar, as well as temperature profiles accurate to the tenth of a degree Celsius. all of these can be set independently for each dose of each brewing group, obtaining the maximum performance from each single-origin or specialty coffee with fully digital control.

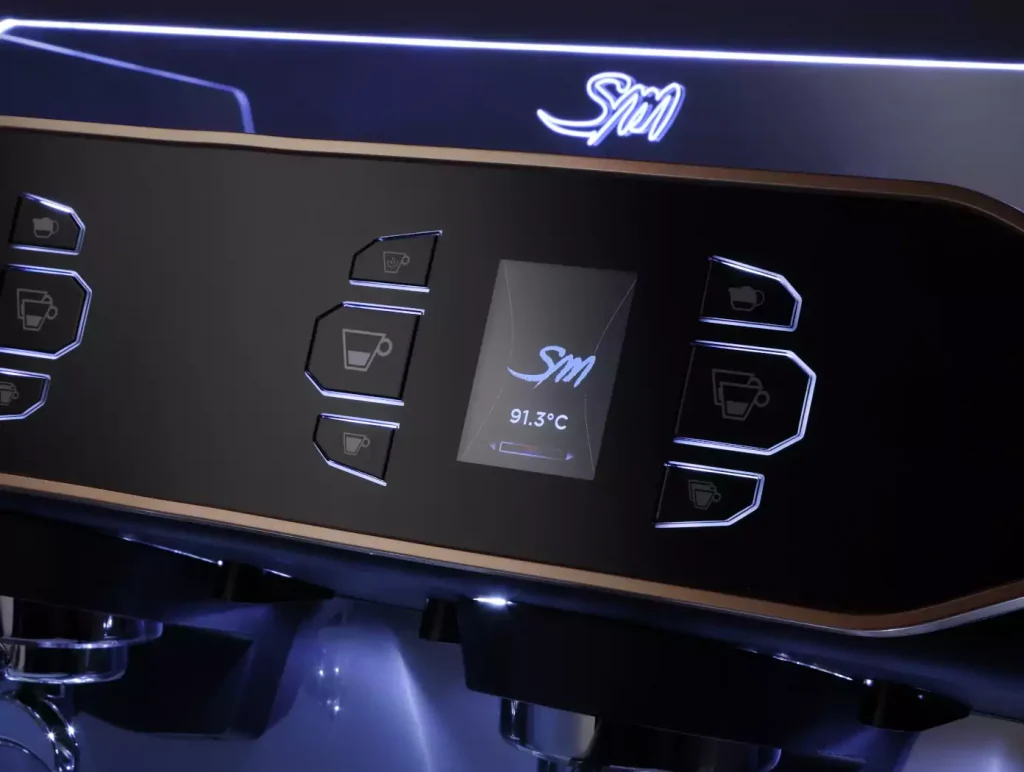

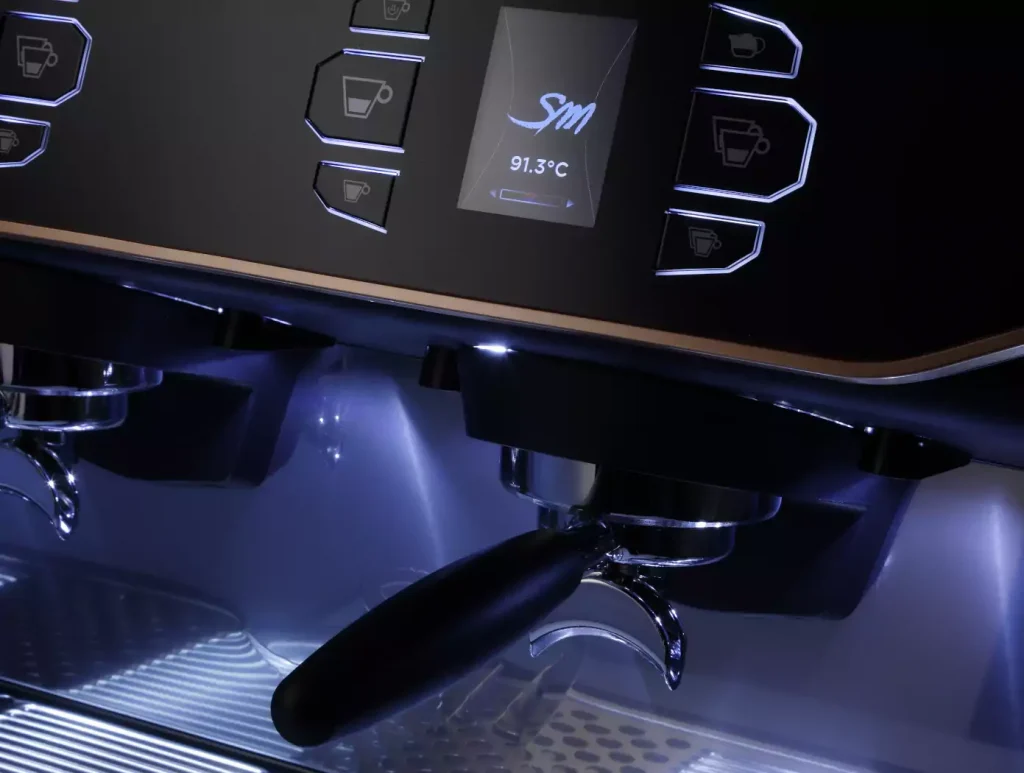

In the version D. “E” the keyboard panel that contains all the functions of the machine is characterized by a large area with mechanically actuated dose buttons and a functional touch display for each brewing group that allows easy access to machine programming.
View More: https://www.lasanmarco.com/en/products-list/
MAIN FEATURES
Keypad with capacitive touch technology
Capacitive touch technology enables the management of commands without moving parts, creating a multi-sensory environment and a new relationship with everyday life. The replacement of traditional components with other innovative touch screens enables the elimination of mechanical and metallic actuators from traditional keypads ensuring higher reliability, lifespan, and protection from mechanical problems. Intuitive and simple, customisable and programmable, the touchpad combines its practicality with the charm and versatility of communication through today’s devices. The electronic principle behind the capacitive touch screen technology used in the keypads is based on controlling the variation of the electrical field acting on the screen in a similar way to the functioning of state-of-the-art smartphones and tablets.

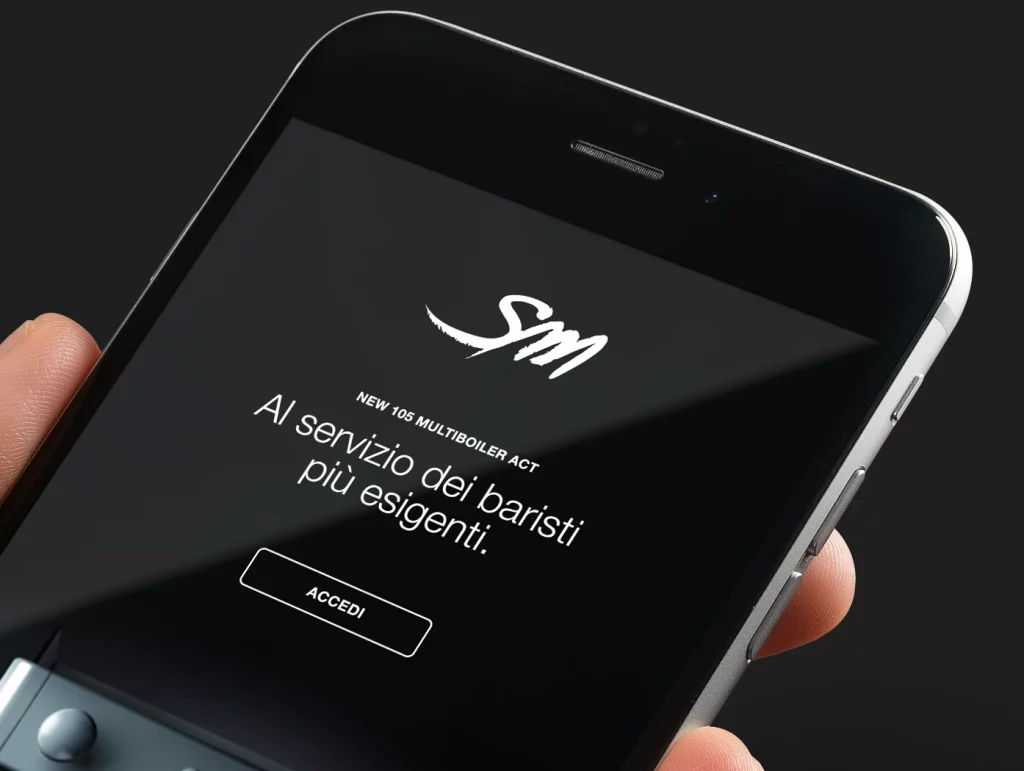

Remote control through an app via email, bluetooth and wi-fi
The 100 Touch model comes with a dedicated APP (downloadable from this page on our website) to remotely control the machine in an immediate, simple, and intuitive way. Through this App the User, who is assigned a username and password, can not only set up, manage, and control the machine first-hand via Bluetooth, but they can also monitor and optimise its performance and efficiency through analysis of the recorded operational and statistical data, which are available even at a great distance to authorised recipients via email.
The top-of-the-range version of D. offers the multi-boiler configuration with continuous pressure and temperature variation.
Controlling the water pressure allows to reproduce the traditional lever dispensing process in an electronic environment where the trend varies through phases of growth and decrease over the delivery time. The experienced barista can work with the classic lever profile or create, thanks to the action of an asynchronous motor and a system of stepper motor valves, a different profile according to the type of coffee used. *MOD. D. MBV
KEY FEATURES:
- Touch screen control panel with 5” display per group, with 4 programmable doses for each dispenser group plus a semi-automatic start/stop function button (max. 0.5 litres)
- “Purge” button to wash the dispenser group before every brew
- 2x programmable doses of hot water (single and double)
- Mixer for water temperature regulation
- 2 x lever-driven steam wands
- Single-group boiler temperature and pressure display
- Steam/hot water boiler temperature and pressure display
- Automatic electronic temperature regulation for each individual group
- Automatic electronic temperature regulation for steam/hot water boiler
- Pressure profile programming (only for d. mbv)
- Built-in 330 w water-cooled motor-pump (external 300 w air-cooled version on request) (only for d. mbv)
- Single-group stainless steel boiler capacity 0.4 litres – heating element 1250w
- Stainless steel steam boiler (2-group version): capacity 12 litres – heating element 3000w
- Worktop lighting with white led technology
- Smudge-proof stainless steel surfaces
- Automatic wash cycle
- Dose control during brew through three-colour filling bar (blue, green, red)
